» PVE52

Residential Elevators – Home Elevator By PVE®

PVE52 – Residential Elevator

The largest Residential Elevator model available, the PVE52 is the perfect choice for those in need of a Wheelchair Accessible Residential Elevator or wheelchair lift. With it’s quick installation, innovative design and minimal pre-construction requirements, this Three-Passenger Residential Elevator offers everything you need in a residential elevator.

Self-Supporting Home Elevators

This is the largest of the three vacuum elevators, capable of carrying three people or two people if one is in a wheelchair. Even our largest lift takes up less space in your home than other traditional elevators. Like all other vacuum elevators, the PVE52 does not need a separate space for machinery or additional room above and below the lift for a pit. Since the unit has a self-supporting structure, you will not have to add a frame to your home before installing it. This means you can fit this lift anywhere in your home!

ECO-Friendly Residential Elevator

Don’t forget that this vacuum elevator model won’t be costly in your electric bills. As environmentally-friendly home elevators, the only electrical required to power it is 220V, 40 Amp, single phase service. This wheelchair-accessible residential elevator maintains all of the safety and technology features that the other PVE models have as well. Should a power outage occur, the vacuum lift safely descends to the lowest level and the mechanical door lock enables the passenger to exit, preventing passengers from getting stuck. The cabin is equipped with an LED light as well as a cabin fan that circulates the ambient air throughout the elevator car.

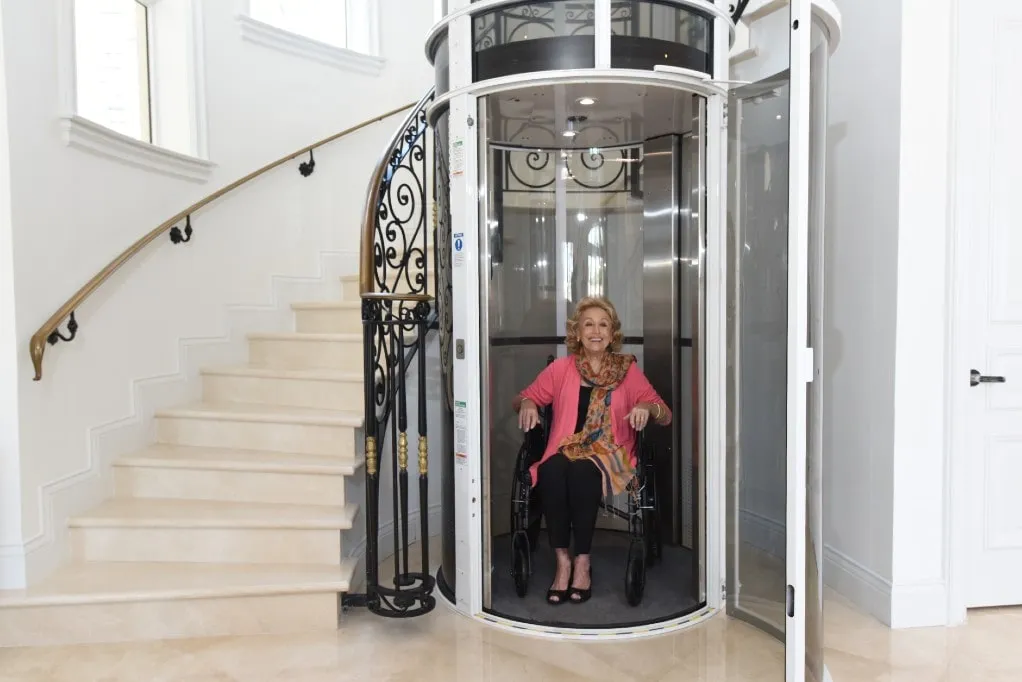

Wheelchair Accessible Home Elevators

The PVE52 has an external cylinder diameter of 52 11/16 inches. Inside the unit measures a roomy 43 1/2 inches in diameter. This provides enough space for a person in a standard sized wheelchair with an attendant or for up to three adults to stand in comfort. As a fully certified residential elevator, please note that the PVE52 home elevator is not ADA compliant and is not permitted for commercial applications. Due to the space-saving design of this elevator, not all wheelchairs may fit inside the cabin. It is recommended to contact a PVE Authorized Distributor to ride and test a PVE52 locally to confirm your wheelchair sizes feasibility. The cabin height is 6′ 7″, which is tall enough for provide headroom for most people. With same side or opposite side door offerings, the largest of the residential vacuum elevators can be configured to accommodate almost any elevator installation.

Panoramic Visibility

There are many options for wheelchair-accessible elevators or wheelchair lifts, but only the PVE52 gives you the space you need, the safety features you require, and a design that compliments your home’s decor. This innovative residential elevator can be set up to have between two to five stops, which means it can be used in homes up to five stories or a total of 50 feet. When you or a loved one needs help getting around in your home, installing a residential wheelchair lift is a good choice. Never has accessibility been so Modern, so attractive, or so simple!

HOME ELEVATOR

PVE52

Three passenger residential elevator

weight: 525 pounds

Diameter: 52-11/16 Inches (1,316 millimeters)

Home Elevators

PVE52 Standard Features

No pit, hoist way, or machine room required
50 ft (15m) Total Rise Max
30 ft/M traveling speed
Two to Five Stops
External cylinder diameter: 52 11/16 inches (1,316mm)
Internal cabin diameter: 43 ½ inches (1,118mm)
Internal cabin height: 6’7” (79 inches/ 2007mm)
Entrance way opening: 32 inches (813mm)

Through Floor or Balcony Mount Landings
Power Supply: 40 AMP 220VAC
In-line and 180° door openings
Aluminum and polycarbonate cylinder structure
Automatic interior LED lighting and fan
Mechanical emergency safety brake system
One year limited manufacturer warranty

OPTIONS

COLORS

Standard Black

Anodized Silver

White

Light Gray

Dark Gray

Taupe

UPGRADES & FEATURES

Homing Feature

Remote Control Option

Phone

Cabin Key Lock

Earthquake Brackets

CUSTOMIZATIONS

Clear Polycarbonate Panels

DOOR OPENING OPTIONS

DRAWINGS & SPECS

Space-Saving, Easy to Use Home Elevators with Low Maintenance

This compact vacuum elevator system is the choice of many homeowners because of its small size, but that’s not its only advantage. PVE30 home elevators offer several benefits for homeowners who use a wheelchair to get around or have other mobility issues. There’s the ease of maintaining this compact pneumatic elevator: Because vacuum elevators use air pressure to operate, thus eliminating the need for shafts or machine rooms, they also have fewer moving parts — which means less maintenance.

What Are the Maintenance Requirements For the PVE52 Home Elevators?

When shopping for small elevators for homes, cost and installation are two of the main considerations. The PVE30 in home elevator installation is much quicker and less impactful than traditional elevators. To install elevator in house takes 1-3 days, and the impact on your home is minimal. Any maintenance required for these home elevators is always expedient and minimally invasive to your daily schedule. A manufacturer’s study shows that pneumatic elevators need maintenance once every 5 years, or about 15,000 lifts, to replace the main seal.

Servicing Over 90+ Countries Globally

testimonials

I thoroughly enjoy riding in my PVE elevator as its extremely comfortable… I would unhesitatingly, recommend it to people who are confined to a wheelchair like myself, to me it’s that good and reliable!

Tamara Gordon

My house was built in 1925 and it was hard to get something to fit in with the décor of my home, but the PVE fit in perfectly. I am thrilled with the design, engineering, and reliability of the elevator by PVE.

Stan Barth

Highly recommend. Working with PVE was such an incredible experience! From our very first meeting they were so professional, time efficient & helpful. Couldn’t be happier. Our elevator is heaven sent. Thank you PVE & team.

Kim Klotz

Home Lift Manufacturers

Pneumatic Vacuum Elevators LLC is the designer and manufacturer of the vacuum elevator.

PVE currently manufactures three versions of its air driven home elevators, ranging from single to a three-passenger, wheelchair accessible home elevator. All of PVE’s home lift systems are capable of up to a 50 foot (15m) vertical rise over as many as five stops. The unique design of our home lift is a perfect choice for any retrofit or new construction project and will enhance the value of one’s home without the consuming footprint of traditional elevator. These innovative home lifts do not require any pre-construction shaft, pit or machine room and can be installed in as little as two to three days. By using a pump to generate areas of higher and lower atmospheric pressure within the cylinder hoist way, the unit smoothly moves between floors while using much less energy than other house elevators.
